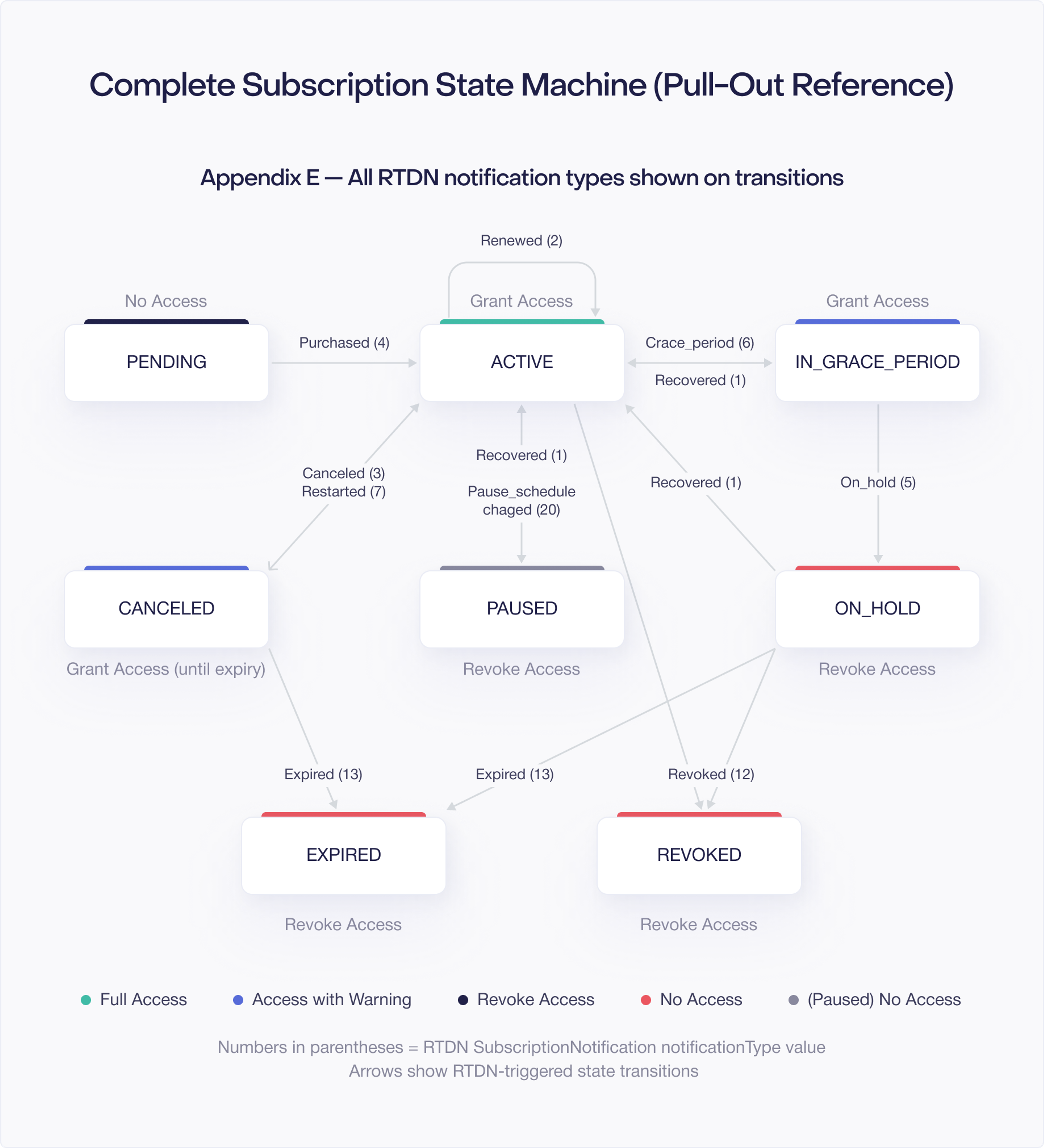

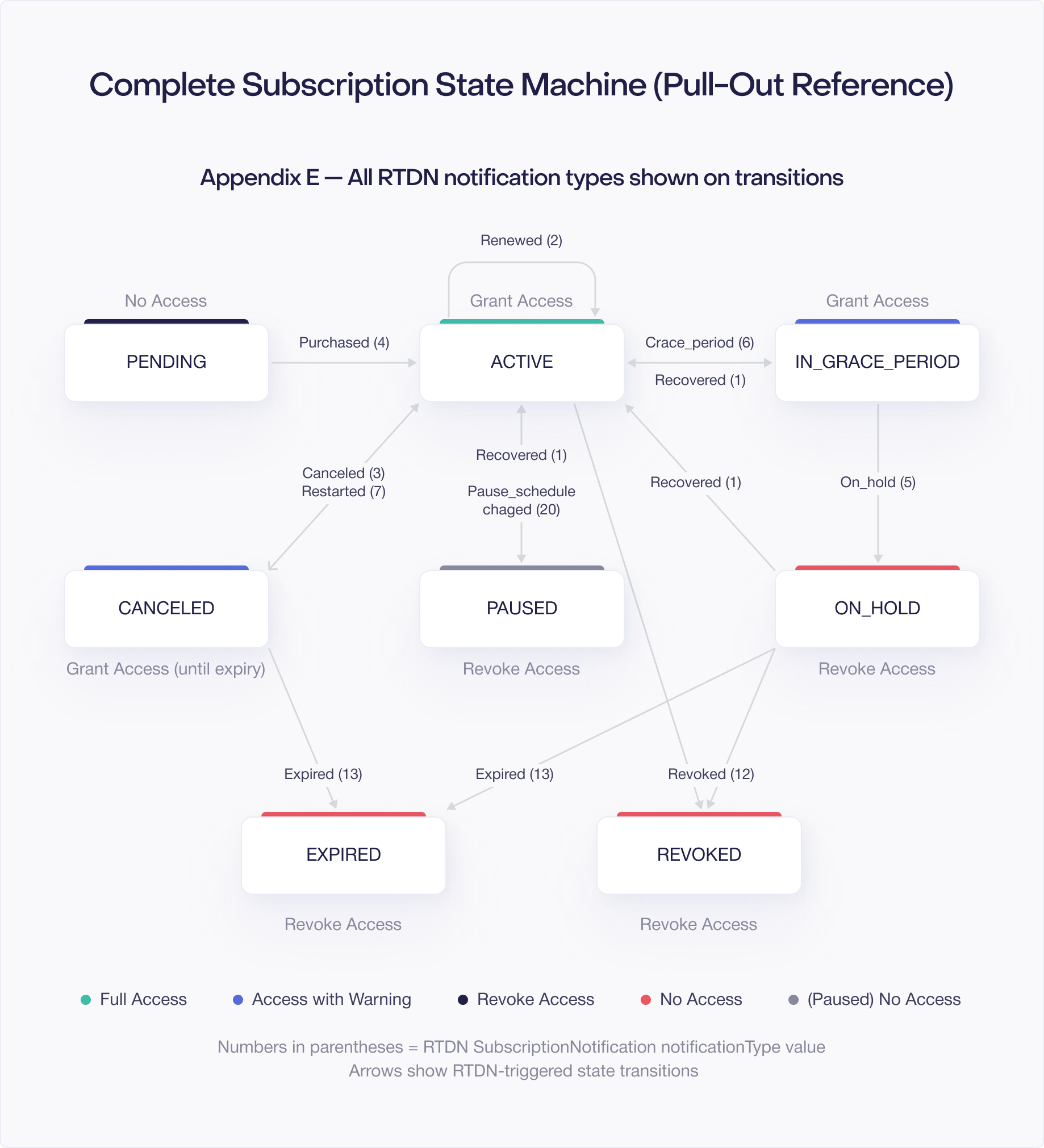

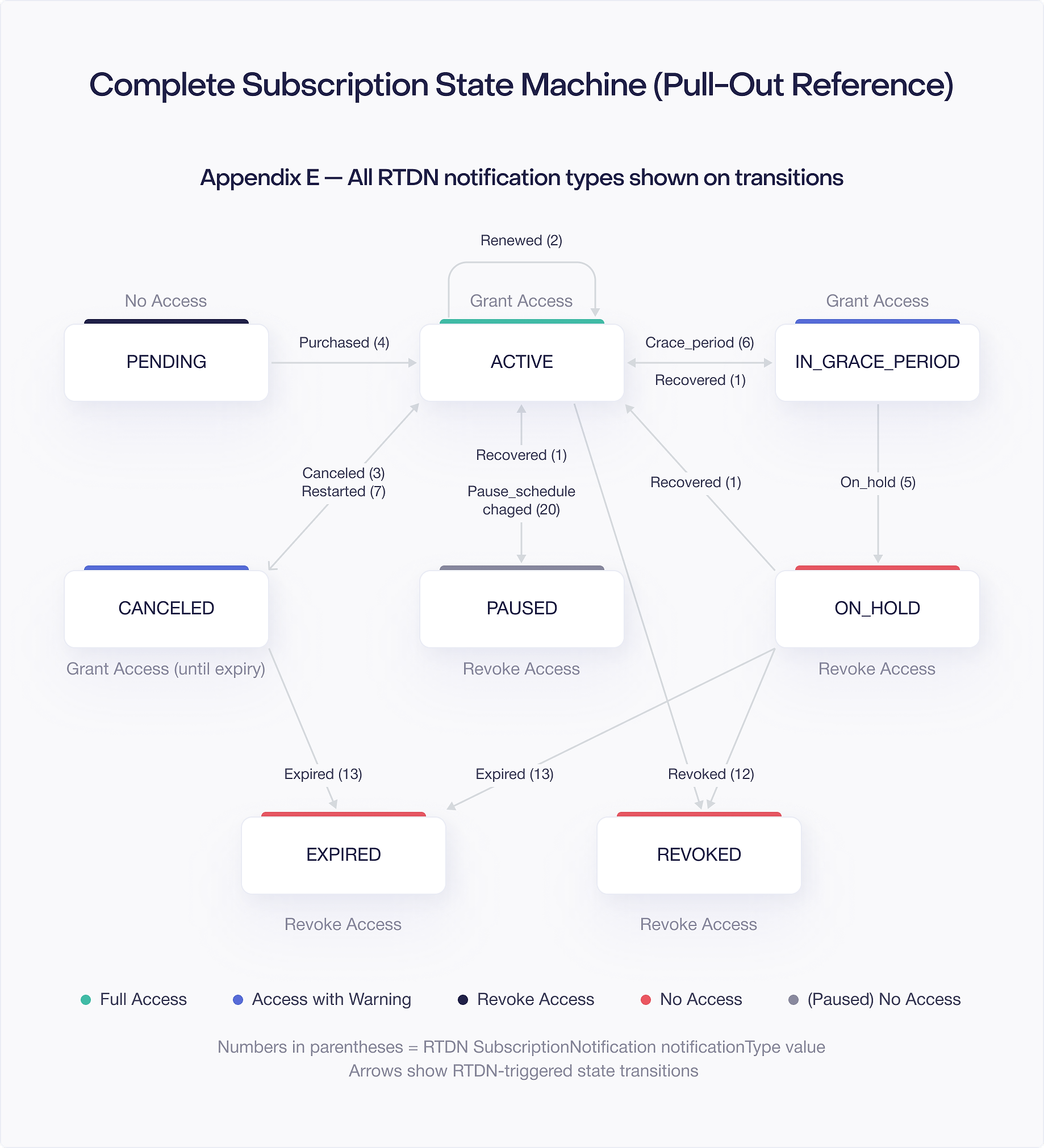

Subscription State Diagram (Pull Out Reference)

This appendix provides the complete subscription state machine as a quick reference card. Print it, pin it to your wall, or keep it open in a tab while building your billing integration.

States at a Glance

State	Access	Icon	Description
PENDING	No	⏳	Purchase initiated but payment not yet processed
ACTIVE	Yes	✅	Subscription is paid and current
IN_GRACE_PERIOD	Yes	⚠️	Payment failed, retrying, user keeps access
ON_HOLD	No	🔒	Grace period expired, access revoked, awaiting payment fix
PAUSED	No	⏸	User requested pause, access revoked
CANCELED	Yes*	🔄	Canceled but not expired, access until `expiryTime`
EXPIRED	No	❌	Subscription has ended

*CANCELED grants access only until expiryTime.

All State Transitions

From PENDING

To	Trigger	RTDN
ACTIVE	Payment completes	`SUBSCRIPTION_PURCHASED` (4)
EXPIRED	Payment fails or times out	`SUBSCRIPTION_PENDING_PURCHASE_CANCELED` (20)

From ACTIVE

To	Trigger	RTDN
ACTIVE	Successful renewal	`SUBSCRIPTION_RENEWED` (2)
IN_GRACE_PERIOD	Renewal payment fails (grace period enabled)	`SUBSCRIPTION_IN_GRACE_PERIOD` (6)
ON_HOLD	Renewal payment fails (no grace period, account hold enabled)	`SUBSCRIPTION_ON_HOLD` (5)
CANCELED	User or developer cancels	`SUBSCRIPTION_CANCELED` (3)
EXPIRED	Revoked or refunded	`SUBSCRIPTION_REVOKED` (12)
PAUSED	Pause takes effect at end of period	`SUBSCRIPTION_PAUSED` (10)

From IN_GRACE_PERIOD

To	Trigger	RTDN
ACTIVE	Payment recovered	`SUBSCRIPTION_RECOVERED` (1)
ON_HOLD	Grace period expires without payment	`SUBSCRIPTION_ON_HOLD` (5)
EXPIRED	Grace period expires (no account hold)	`SUBSCRIPTION_EXPIRED` (13)

From ON_HOLD

To	Trigger	RTDN
ACTIVE	User fixes payment	`SUBSCRIPTION_RECOVERED` (1)
EXPIRED	Account hold period expires	`SUBSCRIPTION_EXPIRED` (13)

From PAUSED

To	Trigger	RTDN
ACTIVE	Pause ends, payment succeeds	`SUBSCRIPTION_RECOVERED` (1)
ON_HOLD	Pause ends, payment fails	`SUBSCRIPTION_ON_HOLD` (5)

From CANCELED

To	Trigger	RTDN
ACTIVE	User restores before expiration	`SUBSCRIPTION_RESTARTED` (7)
EXPIRED	`expiryTime` reached	`SUBSCRIPTION_EXPIRED` (13)

From EXPIRED

To	Trigger	RTDN
ACTIVE	User resubscribes (new purchase token)	`SUBSCRIPTION_PURCHASED` (4)

Access Decision Flowchart

Use this logic to determine whether to grant access:

kotlin

1. Is subscriptionState == ACTIVE?
   → YES: Grant access

2. Is subscriptionState == IN_GRACE_PERIOD?
   → YES: Grant access (show payment warning)

3. Is subscriptionState == CANCELED?
   → Is current time < expiryTime?
     → YES: Grant access (show expiry notice)
     → NO: Revoke access

4. All other states (ON_HOLD, PAUSED,
   EXPIRED, PENDING):
   → Revoke access

Access Decision Code

kotlin

fun shouldGrantAccess(
    state: String,
    expiryTimeMillis: Long
): Boolean = when (state) {
    "SUBSCRIPTION_STATE_ACTIVE",
    "SUBSCRIPTION_STATE_IN_GRACE_PERIOD" -> true
    "SUBSCRIPTION_STATE_CANCELED" ->
        System.currentTimeMillis() < expiryTimeMillis
    else -> false
}

Token Lifecycle

Event	Token Behavior
New purchase	New token created
Renewal	Same token, new Order ID
Upgrade/Downgrade	New token, old token linked via `linkedPurchaseToken`
Restore (before expiry)	Same token
Resubscribe (after expiry)	New token
Pause and resume	Same token
Grace period recovery	Same token
Account hold recovery	Same token

RTDN Quick Reference by Number

#	Name	Common Usage
1	RECOVERED	Restore access after hold/pause
2	RENEWED	Extend access period
3	CANCELED	Note cancellation, keep access until expiry
4	PURCHASED	New subscription, grant access
5	ON_HOLD	Revoke access
6	IN_GRACE_PERIOD	Keep access, warn user
7	RESTARTED	Restore access (same token)
8	PRICE_CHANGE_CONFIRMED	(Deprecated)
9	DEFERRED	Extend billing date
10	PAUSED	Revoke access at period end
11	PAUSE_SCHEDULE_CHANGED	Check pause status
12	REVOKED	Immediately revoke access
13	EXPIRED	Revoke access, clean up
17	ITEMS_CHANGED	Check updated line items
18	CANCELLATION_SCHEDULED	Note scheduled cancellation
19	PRICE_CHANGE_UPDATED	Check price change details
20	PENDING_PURCHASE_CANCELED	Clean up pending records
22	PRICE_STEP_UP_CONSENT_UPDATED	Check consent status

Time Windows Reference

Window	Duration	What Happens
Acknowledgement	3 days	Unacknowledged purchases are auto refunded
Grace period	Configurable (1-30 days)	User retains access while Google retries payment
Silent grace period	1 day minimum	Even with 0 day setting, there is a minimum 1 day silent period
Account hold	Configurable (up to 30 days)	User loses access, can fix payment to recover
Token validity	60 days post expiration	API calls still work for this window
Pause duration	1 week to 3 months	Depends on billing period configuration

Checklist: Do I Handle Every State?

PENDING: Withhold access, show "pending" message
ACTIVE: Grant full access
IN_GRACE_PERIOD: Grant access + show payment warning + use In App Messaging
ON_HOLD: Revoke access + show "fix payment" message
PAUSED: Revoke access + show "paused" message with resume date
CANCELED: Grant access until expiry + show expiry countdown
EXPIRED: Revoke access + show resubscribe option
